细胞间通讯

# python libs
import decoupler as dc
import liana as li
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scanpy as sc
import seaborn as sns
import session_info

# Setting up R dependencies
import anndata2ri

anndata2ri.activate()

%load_ext rpy2.ipython

%%R
suppressPackageStartupMessages({
    library(reticulate)
    library(ggplot2)
    library(tidyr)
    library(dplyr)
    library(purrr)
    library(tibble)
})

# figure settings
sc.settings.set_figure_params(dpi=200, frameon=False)
sc.set_figure_params(dpi=200, facecolor="white")
sc.set_figure_params(figsize=(5, 5))

# Read in
adata = sc.read(
    "kang_counts_25k.h5ad", backup_url="https://figshare.com/ndownloader/files/34464122"
)

# Store the counts for later use
adata.layers["counts"] = adata.X.copy()

sc.pp.filter_cells(adata, min_genes=200)
sc.pp.filter_genes(adata, min_cells=3)

# Store the counts for later use
adata.layers["counts"] = adata.X.copy()
# Rename label to condition, replicate to patient
adata.obs = adata.obs.rename({"label": "condition", "replicate": "patient"}, axis=1)
# assign sample
adata.obs["sample"] = (
    adata.obs["condition"].astype("str") + "&" + adata.obs["patient"].astype("str")
)

# log1p normalize the data
sc.pp.normalize_total(adata)
sc.pp.log1p(adata)

adata.obs["cell_type"].cat.categories

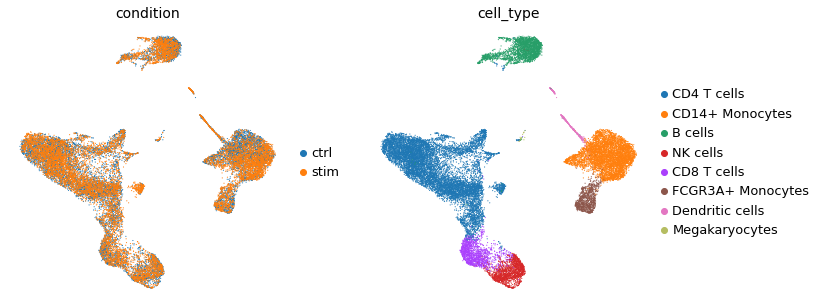

sc.pl.umap(adata, color=["condition", "cell_type"], frameon=False)

adata_stim = adata[adata.obs["condition"] == "stim"].copy()
adata_stim

# import cellphonedb method via liana
from liana.method import cellphonedb

cellphonedb(
    adata_stim, groupby="cell_type", use_raw=False, return_all_lrs=True, verbose=True
)

adata_stim.uns["liana_res"].head()

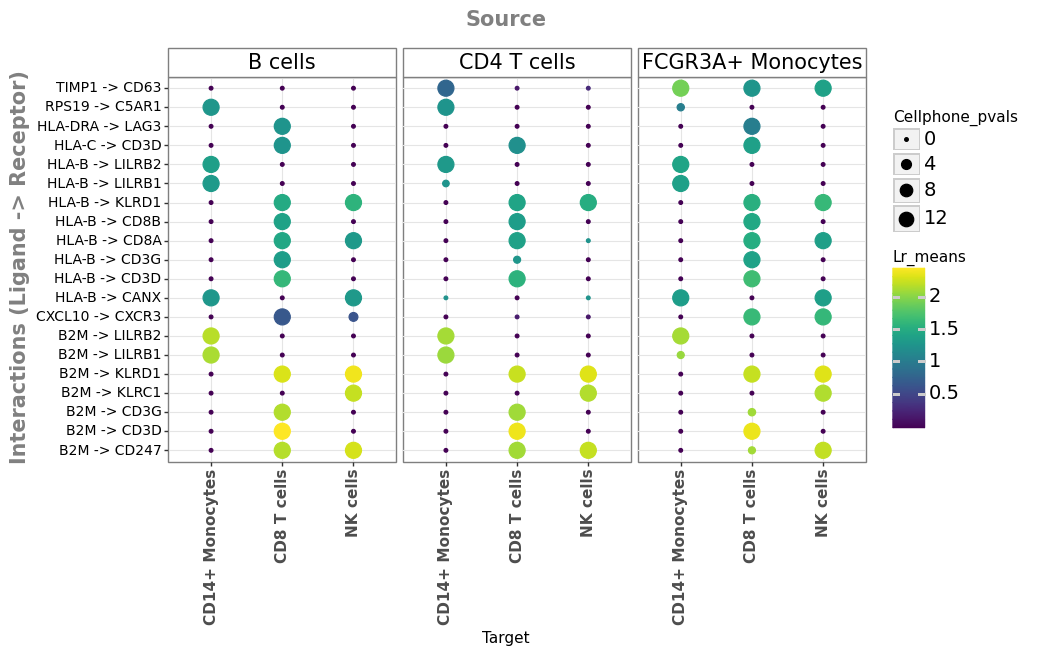

li.pl.dotplot(
    adata=adata_stim,
    colour="lr_means",
    size="cellphone_pvals",
    inverse_size=True,  # we inverse sign since we want small p-values to have large sizes
    # We choose only the cell types which we wish to plot
    source_labels=["CD4 T cells", "B cells", "FCGR3A+ Monocytes"],
    target_labels=["CD8 T cells", "CD14+ Monocytes", "NK cells"],
    # since cpdbv2 suggests using a filter to FPs
    # we can filter the interactions according to p-values <= 0.01
    filter_fun=lambda x: x["cellphone_pvals"] <= 0.01,
    # as this type of methods tends to result in large numbers
    # of predictions, we can also further order according to expression magnitude
    orderby="lr_means",
    orderby_ascending=False,  # we want to prioritize those with highest expression
    top_n=20,  # and we want to keep only the top 20 interactions
    figure_size=(9, 5),
    size_range=(1, 6),
)

li.method.show_methods()

from liana.method import rank_aggregate

rank_aggregate(
    adata_stim, groupby="cell_type", return_all_lrs=True, use_raw=False, verbose=True
)

adata_stim.uns["liana_res"].drop_duplicates(
    ["ligand_complex", "receptor_complex"]
).head()

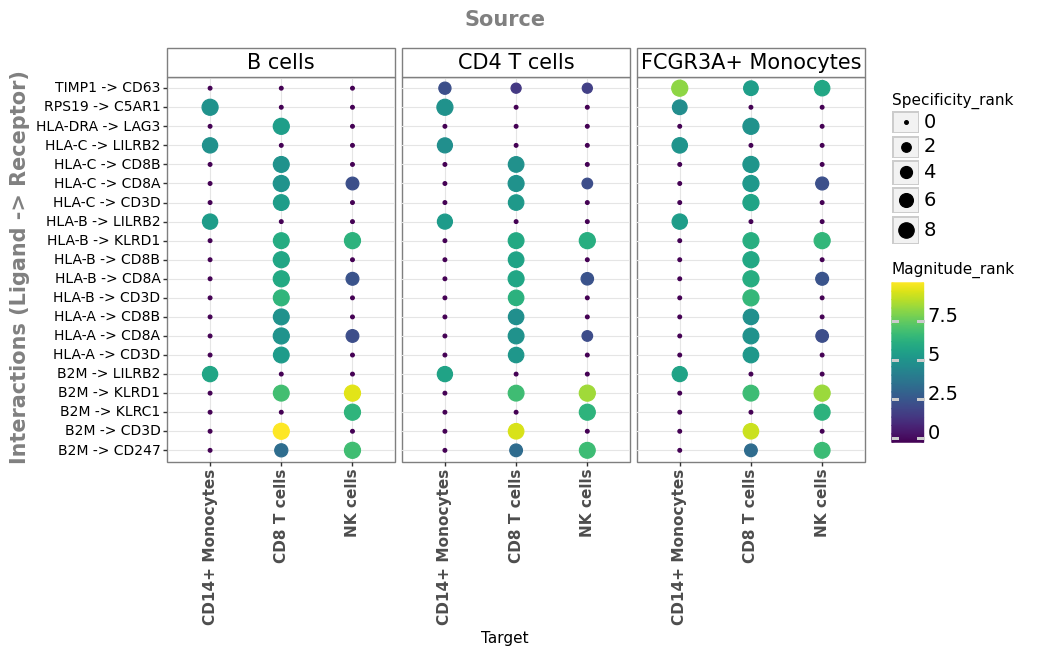

li.pl.dotplot(
    adata=adata_stim,
    colour="magnitude_rank",
    size="specificity_rank",
    inverse_colour=True,  # we inverse sign since we want small p-values to have large sizes
    inverse_size=True,
    # We choose only the cell types which we wish to plot
    source_labels=["CD4 T cells", "B cells", "FCGR3A+ Monocytes"],
    target_labels=["CD8 T cells", "CD14+ Monocytes", "NK cells"],
    # since the rank_aggregate can also be interpreted as a probability distribution
    # we can again filter them according to their specificity significance
    # yet here the interactions are filtered according to
    # how consistently highly-ranked is their specificity across the methods
    # filterby="specificity_rank",
    # filter_lambda=lambda x: x <= 0.05,
    filter_fun=lambda x: x["specificity_rank"] <= 0.05,
    # again, we can also further order according to magnitude
    orderby="magnitude_rank",
    orderby_ascending=True,  # prioritize those with lowest values
    top_n=20,  # and we want to keep only the top 20 interactions
    figure_size=(9, 5),
    size_range=(1, 6),
)

%%R
# load NicheNet (NicheNet is only available on GitHub)
suppressPackageStartupMessages({
    if(!require(nichenetr)) remotes::install_github("saeyslab/nichenetr", upgrade = "never")
})

%%R
# Increase timeout threshold
options(timeout=600)

# Load PK
ligand_target_matrix <- readRDS(url("https://zenodo.org/record/7074291/files/ligand_target_matrix_nsga2r_final.rds"))
lr_network <- readRDS(url("https://zenodo.org/record/7074291/files/lr_network_human_21122021.rds"))

sender_celltypes = ["CD4 T cells", "B cells", "FCGR3A+ Monocytes"]
receiver_celltypes = ["CD8 T cells"]

# Helper function to obtain sufficiently expressed genes
from functools import reduce


def get_expressed_genes(adata, cell_type, expr_prop):
    # calculate proportions
    temp = adata[adata.obs["cell_type"] == cell_type, :]
    a = temp.X.getnnz(axis=0) / temp.X.shape[0]
    stats = (
        pd.DataFrame({"genes": temp.var_names, "props": a})
        .assign(cell_type=cell_type)
        .sort_values("genes")
    )

    # obtain expressed genes
    stats = stats[stats["props"] >= expr_prop]
    expressed_genes = stats["genes"].values

    return expressed_genes

sender_expressed = reduce(
    np.union1d,
    [
        get_expressed_genes(adata, cell_type=cell_type, expr_prop=0.1)
        for cell_type in sender_celltypes
    ],
)
receiver_expressed = reduce(
    np.union1d,
    [
        get_expressed_genes(adata, cell_type=cell_type, expr_prop=0.1)
        for cell_type in receiver_celltypes
    ],
)

%%R -i sender_expressed -i receiver_expressed
# get ligands and receptors in the resource
ligands <- lr_network %>% pull(from) %>% unique()
receptors <- lr_network %>% pull(to) %>% unique()

# only keep the intersect between the resource and the data
expressed_ligands <- intersect(ligands, sender_expressed)
expressed_receptors <- intersect(receptors, receiver_expressed)

# filter the network to only include ligands for which both the ligand and receptor are expressed
potential_ligands <- lr_network %>%
  filter(from %in% expressed_ligands & to %in% expressed_receptors) %>%
  pull(from) %>% unique()

# Get pseudo-bulk profile
pdata = dc.get_pseudobulk(
    adata,
    sample_col="sample",
    groups_col="cell_type",
    min_prop=0.1,
    min_smpls=3,
    layer="counts",
)

# Storing the raw counts
pdata.layers["counts"] = pdata.X.copy()

# Does PC1 captures a meaningful biological or technical fact?
pdata.obs["lib_size"] = pdata.X.sum(1)

# Normalize
sc.pp.normalize_total(pdata, target_sum=1e4)
sc.pp.log1p(pdata)
# check how this looks like
pdata

logFCs, pvals = dc.get_contrast(
    pdata,
    group_col="cell_type",
    condition_col="condition",
    condition="stim",
    reference="ctrl",
    method="t-test",
)

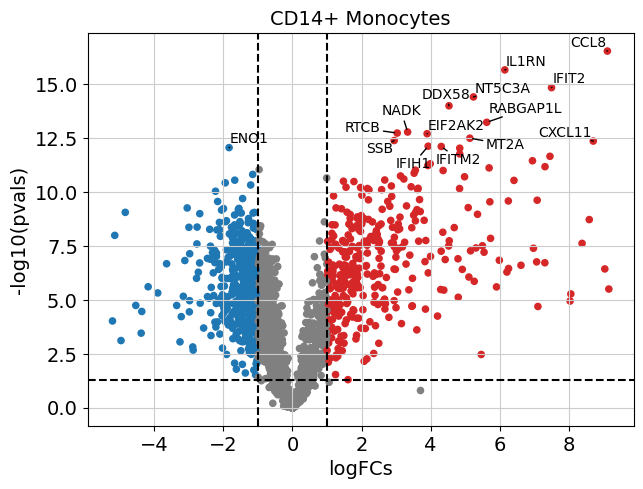

# Visualize those for e.g. CD14+ Monocytes
dc.plot_volcano(logFCs, pvals, "CD14+ Monocytes", top=15, sign_thr=0.05, lFCs_thr=1)

# format results
deg = dc.format_contrast_results(logFCs, pvals)
# only keep the receiver cell type(s)
deg = deg[np.isin(deg["contrast"], receiver_celltypes)]
deg.head()

# define background of sufficiently expressed genes
background_genes = deg["name"].values

# only keep significant and positive DE genes
deg = deg[(deg["pvals"] <= 0.05) & (deg["logFCs"] > 1)]
# get geneset of interest
geneset_oi = deg["name"].values

%%R -i geneset_oi -i background_genes -o ligand_activities

ligand_activities <- predict_ligand_activities(geneset = geneset_oi,
                                               background_expressed_genes = background_genes,
                                               ligand_target_matrix = ligand_target_matrix,
                                               potential_ligands = potential_ligands)

ligand_activities <- ligand_activities %>%
  arrange(-aupr) %>%
  mutate(rank = rank(desc(aupr)))

# show top10 ligand activities
head(ligand_activities, n=10)

%%R -o vis_ligand_target
top_ligands <- ligand_activities %>%
  top_n(15, aupr) %>%
  arrange(-aupr) %>%
  pull(test_ligand) %>%
  unique()

# get regulatory potentials
ligand_target_potential <- map(top_ligands,
                               ~get_weighted_ligand_target_links(.x,
                                                                 geneset = geneset_oi,
                                                                 ligand_target_matrix = ligand_target_matrix,
                                                                 n = 500)
                              ) %>%
    bind_rows() %>%
    drop_na()

# prep for visualization
active_ligand_target_links <-
  prepare_ligand_target_visualization(ligand_target_df = ligand_target_potential,
                                      ligand_target_matrix = ligand_target_matrix)

# order ligands & targets
order_ligands <- intersect(top_ligands,
                           colnames(active_ligand_target_links)) %>% rev() %>% make.names()
order_targets <- ligand_target_potential$target %>%
  unique() %>%
  intersect(rownames(active_ligand_target_links)) %>%
  make.names()
rownames(active_ligand_target_links) <- rownames(active_ligand_target_links) %>%
  make.names() # make.names() for heatmap visualization of genes like H2-T23
colnames(active_ligand_target_links) <- colnames(active_ligand_target_links) %>%
  make.names() # make.names() for heatmap visualization of genes like H2-T23

vis_ligand_target <- active_ligand_target_links[order_targets, order_ligands] %>%
  t()

# convert to dataframe, and then it's returned to py
vis_ligand_target <- vis_ligand_target %>%
    as.data.frame() %>%
    rownames_to_column("ligand") %>%
    as_tibble()

# convert dot to underscore and set ligand as index
vis_ligand_target["ligand"] = vis_ligand_target["ligand"].replace(
    r"\.", "_", regex=True
)
vis_ligand_target.set_index("ligand", inplace=True)
# keep only columns where at least one gene has a regulatory potential >= 0.05
vis_ligand_target = vis_ligand_target.loc[
    :, vis_ligand_target[vis_ligand_target >= 0.05].any()
]
vis_ligand_target.head()

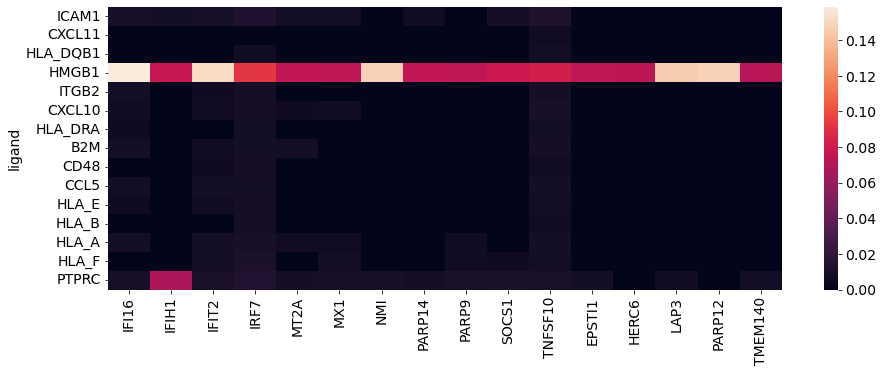

fig, ax = plt.subplots(1, 1, figsize=(15, 5))
sns.heatmap(vis_ligand_target, xticklabels=True, ax=ax)
plt.show()

ligand_oi = ligand_activities.head(3)["test_ligand"].values

ligand_oi

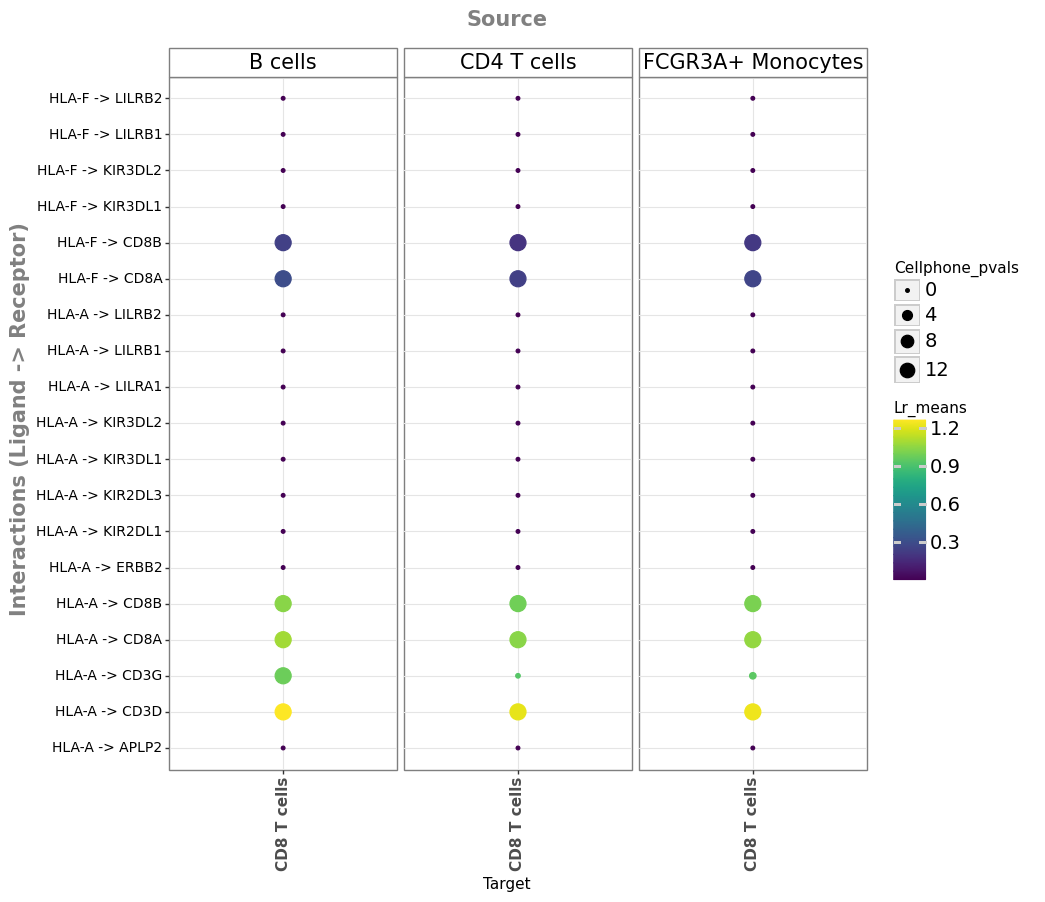

li.pl.dotplot(
    adata=adata_stim,
    colour="lr_means",
    size="cellphone_pvals",
    inverse_size=True,  # we inverse sign since we want small p-values to have large sizes
    # We choose only the cell types which we wish to plot
    source_labels=sender_celltypes,
    target_labels=receiver_celltypes,
    # keep only those ligands
    # filterby="ligand_complex",
    # filter_lambda=lambda x: np.isin(x, ligand_oi),
    filter_fun=lambda x: x["ligand_complex"] <= 0.01,
    # as this type of methods tends to result in large numbers
    # of predictions, we can also further order according to
    # expression magnitude
    orderby="magnitude_rank",
    orderby_ascending=False,  # we want to prioritize those with highest expression
    top_n=25,  # and we want to keep only the top 25 interactions
    figure_size=(9, 9),
    size_range=(1, 6),
)

%%R
sessionInfo()

session_info.show()
